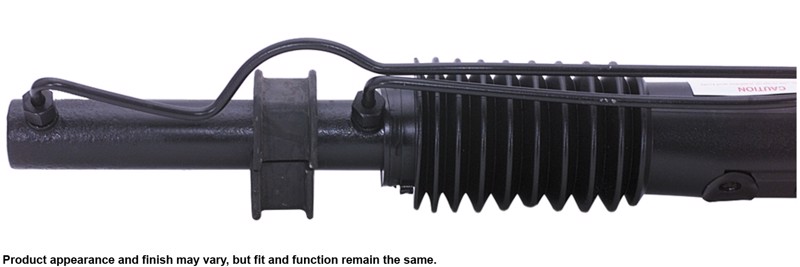

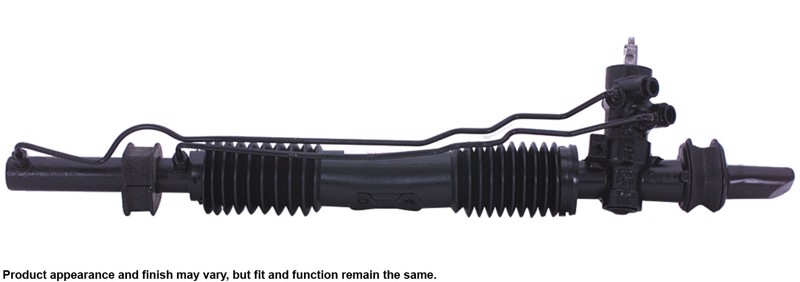

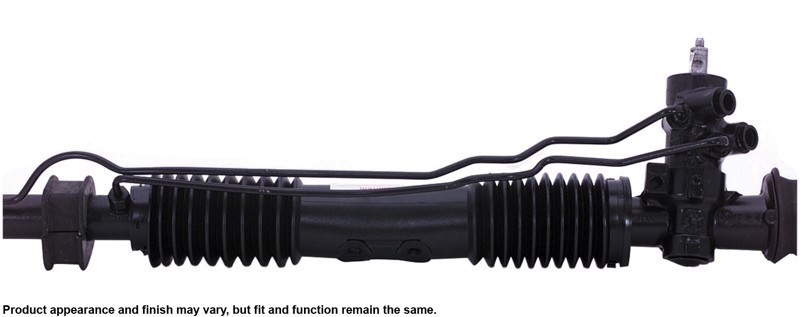

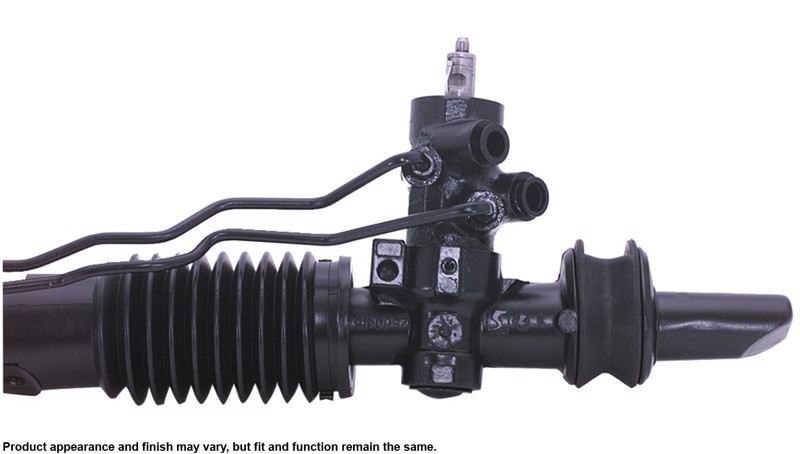

Rack and Pinion Assembly for Buick Cadillac Chevrolet Oldsmobile Pontiac - 22-109 Remanufactured

Key Features:
  • 100% replacement of rubber sealing components
  • Finished in protective coating to prevent corrosion and rust
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit
  • Application of specialized lubricant(s) for extended life
Out Of Stock
Free Shipping
Cardone Reman
$107.93
Brand Cardone Reman
Part Number 22-109
Condition New
Ships Within 1-2 Business Days
This item qualifies for FREE UPS Ground Shipping
Notify Me
Free Shipping
USA 48 contiguous states
Support
9AM-5PM EST
Mon-Fri
100% Safety
Only secure payments
Hot Offers
Daily discounts on hot items
Tough to steer? Power Steering fluid leaking from the rack and pinion? Then its time to replace your Rack and Pinion Assembly on your Achieva, Beretta, Calais or Cavalier. Cardone offers top quality remanufactured affordable replacement that matched your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
INTERCHANGE
Chevrolet : 26045047
Chevrolet : 26016700
Chevrolet : 26045042
Chevrolet : 7849353
Chevrolet : 26002446
Chevrolet : 26005478
Chevrolet : 26032209
Chevrolet : 26011539
Chevrolet : 26032210
Chevrolet : 26024911
Chevrolet : 26037248
Chevrolet : 26034866
Chevrolet : 7849351
General Motors : 26046223
General Motors : 26016702
General Motors : 26026745
General Motors : 26024911
General Motors : 26037248
General Motors : 26002446
General Motors : 7849351
General Motors : 26016778
General Motors : 26045047
General Motors : 26024908
General Motors : 26002444
General Motors : 26005479
General Motors : 26011538
General Motors : 26011539
General Motors : 26034866
General Motors : 26046227
General Motors : 26032209
General Motors : 26034865
General Motors : 26046225
General Motors : 26005478
General Motors : 26009942
General Motors : 26024905
General Motors : 26045042
General Motors : 26016787
General Motors : 7849353
General Motors : 26016315
General Motors : 26016700
General Motors : 26024910
General Motors : 26032210
Buick : 26005479
Buick : 26011539
Buick : 26016778
Buick : 26026745
Buick : 26002446
Buick : 26005478
Buick : 26046223
Buick : 26009942
Buick : 26024910
Buick : 7849351
Buick : 26016787
Buick : 7849353
Cadillac : 26002444
Cadillac : 7849353
Cadillac : 7849351
Oldsmobile : 26011539
Oldsmobile : 26024905
Oldsmobile : 26045047
Oldsmobile : 26016315
Oldsmobile : 7849351
Oldsmobile : 26016702
Oldsmobile : 26024908
Oldsmobile : 7849353
Oldsmobile : 26009942
Oldsmobile : 26045042
Oldsmobile : 26002446
Oldsmobile : 26046225
Oldsmobile : 26034865
Pontiac : 26034865
Pontiac : 26046225
Pontiac : 26016315
Pontiac : 26045042
Pontiac : 7849351
Pontiac : 26024908
Pontiac : 26046227
Pontiac : 26016700
Pontiac : 26002446
Pontiac : 26009942
Pontiac : 26011539
Pontiac : 26016702
Pontiac : 7849353
Pontiac : 26045047
Pontiac : 26005478
SPECIFICATIONS
First Application Year
1982
Casting Material
Steel/Aluminum
Package Contents
Rack and Pinion, Rubber Bushings, Sealing Kit, Instruction Sheet
Product Condition
Remanufactured
Number of Mounting Holes
2
Hose Port Type
O-Ring
Tie Rod Ends Included
No Tie Rod Ends Included
Total Turns Lock to Lock
2.31
Pressure Port Thread Size
M18 x 1.5
Return Port Thread Size
M16 x 1.5
E-Waste
No
Rack Length (mm)
844.55
Thread Length (in)
0
Thread Length (mm)
0.00
Distance Between Mounting Holes (in)
1.97
Distance Between Mounting Holes (mm)
50.01
Steering Rack Color
Black
Input Shaft Diameter (in)
0.79
Input Shaft Diameter (mm)
19.96
Input Shaft Length (in)
1.13
Input Shaft Length (mm)
28.58
Rack Length (in)
33.25
FAQs
For the first few minutes of driving my car, the steering is hard. Is the rack and pinion bad or the power steering pump?
FAQs
I replaced the rack and now the power steering pump is whining. What happened? It never did this before!
FAQs
Steering not returning to center coming out of a turn. What could be causing this?
FAQs
The most likely cause of power steering pump whine is air in the system. The Steering system must be bled completely.
FAQs
The rack and pinion does not return to center by itself. The geometry of the front suspension causes the wheels to return to center coming out of a turn. If the vehicle will not return to center, first, check the front end alignment, then, check for a restricted return line in the power steering system. If the return line is restricted or kinked, this could be blocking the flow of fluid back to the pump.
FAQs
This symptom is classified as "morning sickness". This condition is caused by Teflon sealing rings on the spool valve wearing grooves in the aluminum housing of the rack and pinion resulting in an internal bypass of pressure. Once the housing warms up, the metal will expand and reduce the pressure loss. The rack and pinion must be replaced.
Features and Benefits
100% hydraulic testing for proper flow, leakage and performance ensures perfect fit and function (where applicable).
Features and Benefits
100% new O.E.- style o-rings and lip seals ensure leak-free and long-lasting performance (where applicable)
Features and Benefits
100% performance testing to ensure perfect fit, function and reliable performance.
Features and Benefits
All new spool valve seals and rack donut seals are installed to eliminate internal leaks and ensure reliable performance (where applicable).
Features and Benefits
As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
Features and Benefits
Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Features and Benefits
Protective coating applied to each unit to extend the life of the unit (where applicable).
Features and Benefits
Racks are surfaced to precise specifications to prevent leaking between chambers and extend unit life.
Features and Benefits
Valve housings have polished micro-finish sleeves for durability (where applicable).
Cardone Reman
CARDONE Remanufactured Rack & Pinions are re-engineered, built and tested to meet or exceed O.E. fit and performance. 100% new, O.E.-style o-rings and seals are installed to ensure leak-free, long-lasting performance. A final protective coating is applied and each unit is tested to guarantee a perfect fit and function.
CARDONE Remanufactured Rack & Pinions are re-engineered, built and tested to meet or exceed O.E. fit and performance. 100% new, O.E.-style o-rings and seals are installed to ensure leak-free, long-lasting performance. A final protective coating is applied and each unit is tested to guarantee a perfect fit and function.
