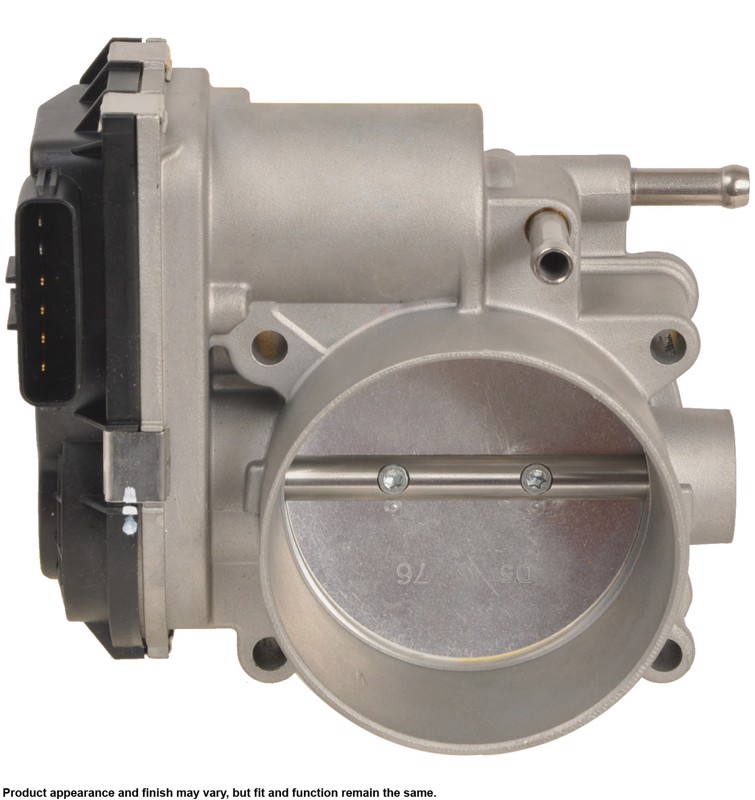

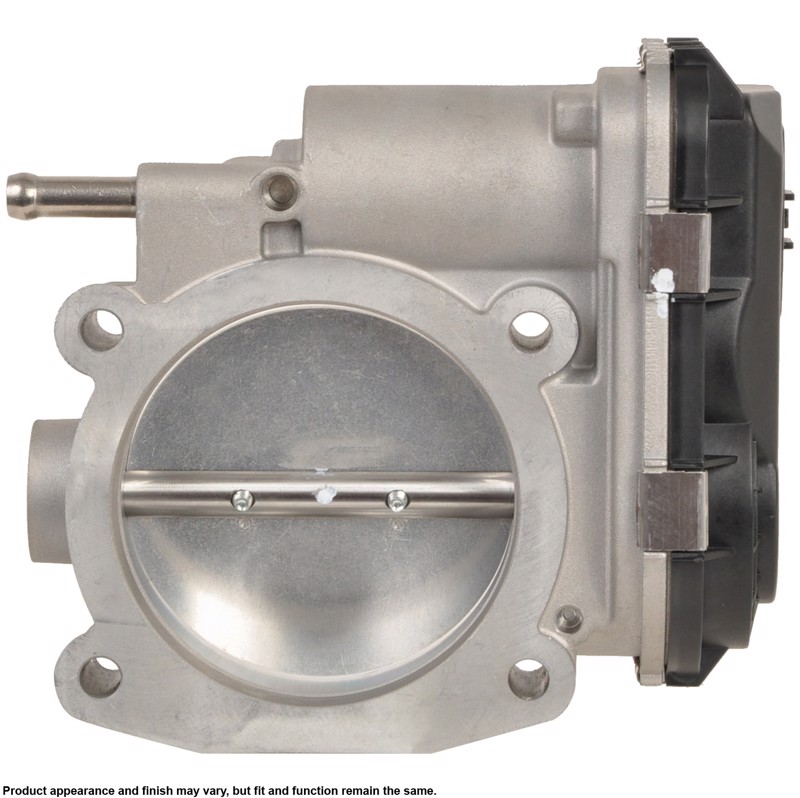

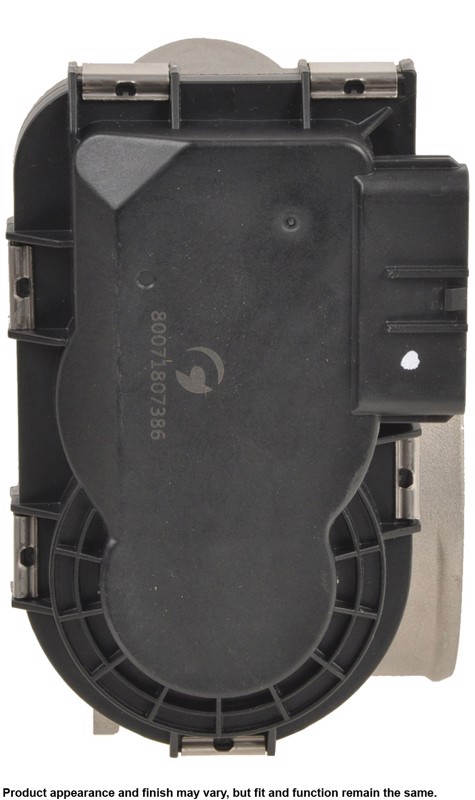

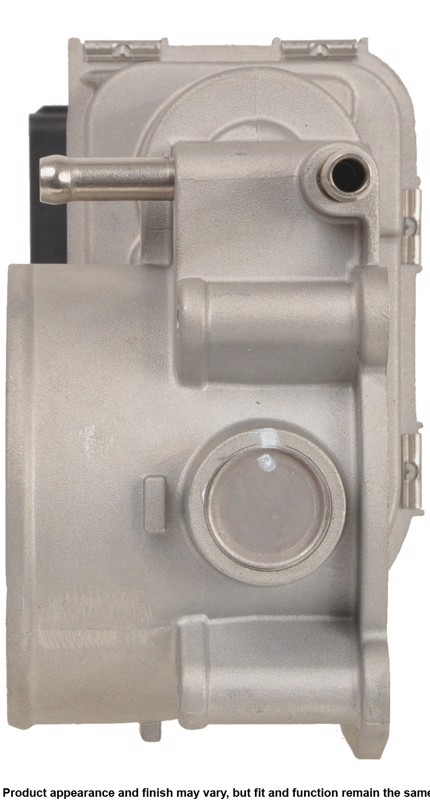

If you are looking to replace your Fuel Injection Throttle Body on your 4Runner, GX470, Land Cruiser or LX470 Cardone offers a new and affordable replacement that matches your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
INTERCHANGE
Toyota : 220300F010
Lexus : 220300F010
Toyota : 220300S010
Lexus : 220300S010
Toyota : 2203038020
Lexus : 2203038020
Toyota : 2203050200
Lexus : 2203050200
SPECIFICATIONS
Bore Diameter (mm)
76.00
E-Waste
Yes
FAQs
A relearn calibration procedure is necessary after installation of replacement throttle body.
FAQs
Are your new throttle bodies the same design as OE?
FAQs
Can I purchase a throttle body with a bigger bore to increase horsepower and improve my throttle response?
FAQs
Do all throttle bodies have an ice breaker mode for extreme cold starts?
FAQs
Do you sell throttle body spacers?
FAQs
Is it ok to bypass the coolant hoses?
FAQs
Is there anything that has to be done after installing the replacement throttle body?
FAQs
No, bypassing of coolant hoses is not recommended. There are cases where we sell units without coolant pipes, because we are following OE supersessions where the pipes have been removed and instructions are provided for rerouting coolant hoses.
FAQs
Not all throttle bodies have this feature where the throttle valve is reversed from its normal movement by the controlling module to break up any ice formation between the throttle bore and valve. This feature is based on application.
FAQs
Swapping your throttle body for one with a bigger bore is not recommended. The throttle bodies we sell are specific to the application.
FAQs
The electronic throttle body is a powertrain component that has a plate, motor, and integrated position sensors which are utilized to regulate the amount of air entering the engine by opening the throttle valve to a desired angle via commands from the vehicles Powertrain Control Module or Throttle Actuator Control Module.
FAQs
The most common failure in an Electronic Throttle Body is the integrated Throttle Position Sensor. The ETB is equipped with high and Low voltage reference Throttle Position Sensor for redundancy. Either one of these sensors could fail or possibly both.
FAQs
The new Electronic Throttle Body is designed and manufactured to meet OE Manufacturer standards.
FAQs
The OE throttle body has coolant hoses attached. What’s the purpose?
FAQs
The purpose of the attached coolant hoses is to keep the throttle body warm by the transfer of heat from the coolant to the housing preventing moisture from freezing between the throttle body bore and throttle valve during extreme cold temperatures.
FAQs
The throttle body is also utilized as part of the cruise control, traction control, stability control, and pre-crash systems, as well as other systems that require engine torque management.
FAQs
We do not sell Throttle Body spacers nor do we recommend the use of a spacer.
FAQs
What causes the Electronic Throttle Body to fail?
FAQs
What else does the throttle body control other than idle air bypass and acceleration throughout driving range?
FAQs
What happens when an Electronic Throttle Body fails?
FAQs
What’s an Electronic Throttle body?
FAQs
When an Electronic Throttle Body fails, the controlling module will illuminate the MIL/SES/CEL, the module will then activate a fail-safe mode operation and gradually reduce the engine’s speed back to an idle rpm.
FAQs
When installing the new Electronic Throttle Body there is no need to modify the vehicle for installation.
FAQs
Will I have to modify anything on the vehicle to install your new throttle body?
Features and Benefits
100% computerized testing of motor, throttle position sensor and articulation ensures reliable and consistent performance.
Features and Benefits
Critical components used in manufacturing the electronic throttle body, including the housing, throttle plate, position sensors, throttle actuator motor and throttle plate return spring conform to precise O.E. dimensions.
Features and Benefits
Each throttle body is tested for all critical functions, including response time and air flow at multiple points, ensuring an optimal fuel/air ratio.
Features and Benefits
Each unit is guaranteed to fit and function like the original.
First Application Year
2005
Gasket or Seal Included
No
Housing Color/Finish
Gray
Housing Material
Aluminum
Idle Air Control Motor Included
No
Inlet Diameter (mm)
86.00
Inlet Type
Round
Outlet Diameter (mm)
77.00
Outlet Type
Round
Package Contents
ETB, Instruction sheet
Product Condition
New
Throttle Body Type
Electric
Throttle Body Actuation Type
Electric
Throttle Body Finish
Finished
Throttle Body Inlet Shape
Round
Throttle Body Material
Aluminum, Steel, Plastic
Throttle Body Outlet Shape
Round
Throttle Position Sensor Included
Yes
Venturi Quantity
1
All CARDONE 100% New Fuel Injection Throttle Body are guaranteed to fit and function like the original due to our proprietary engineering standards. Each unit is built and tested to ensure quick installation and reliable performance. All components match O.E., ensuring accurate function in all driving conditions and peak performance for your 4Runner, GX470, Land Cruiser or LX470.
