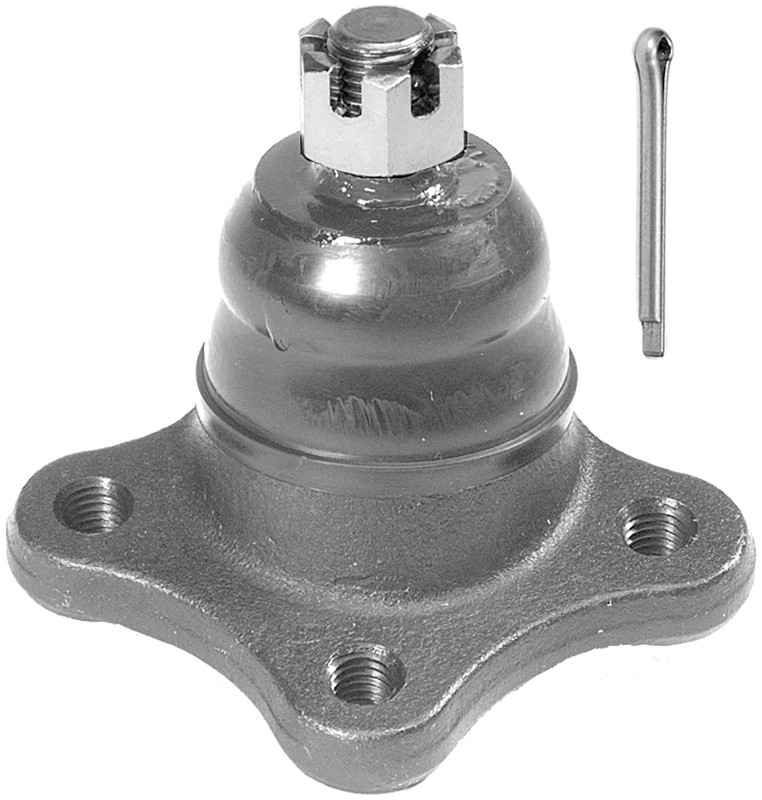

If you are looking to replace your Suspension Ball Joint on your B2000, B2200 or B2600 Delphi offers an affordable replacement that matched your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
INTERCHANGE
Mazda : 8AU1-34-540
Import Direct : BJ06041
Mevotech : MK9554
MAS Industries : B9554
Beck/Arnley : 101-0511
Beck/Arnley : 101-3895
MOOG Chassis Products : K9554
SPECIFICATIONS
Material
Ball Material - Alloy Steel SAE 5140, Housing Material - Carbon Steel SAE 1040
Maximum Outside Diameter
2.52
Maximum Outside Diameter
64.0
Color
Gray
Stud Thread Diameter
12.0
Castle Nut Included
Yes
Grease Fitting Included
No
Suspension Grade Type
Standard
Dust Boot Included
Yes
Ball Joint Assembly
Yes
Width
72.0
Type
Premium
Cotter Pin Included
Yes
Cotter Pin Hole
Yes
Mounting Hardware Included
Yes
Mounting Bolt Length
30.3
Washers Included
Yes
Height
2.559
Nuts Included
Yes
Mounting Hole Quantity
3
Adjustable
No
Greaseable
No
Stud Thread Length
0.768
Stud Thread Length
19.5
Stud Type
Threaded
Mounting Type
Bolt In
Distance Between Mounting Holes
23.0
Distance Between Mounting Holes
61.0
Dust Boot Material
Choloroprene Rubber (CR)
Bushing Quantity
0
Mounting Bolt Shank Diameter
8.0
Mounting Bolt Head Diameter
15.0
Mounting Bolts Included
Yes
Mounting Bolt Thread Pitch
1.25
Mounting Bolt Thread Length
25.0
Mount Plate Included
No
Tapered Stud
Yes
Stud Tapered End 2 Diameter
0.591
Stud Tapered End 2 Diameter
15.0
Stud Tapered End 1 Diameter
0.535
Stud Tapered End 1 Diameter
13.6
Stud Thread Pitch
1.25
Our OE safety technology is fitted to millions of vehicles worldwide and we apply our OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
