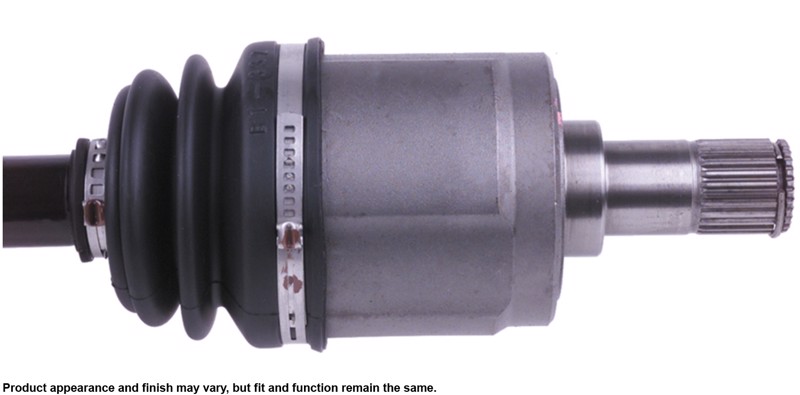

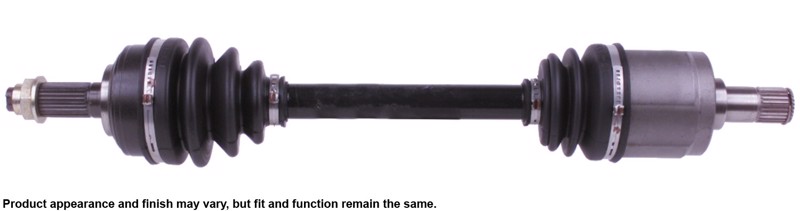

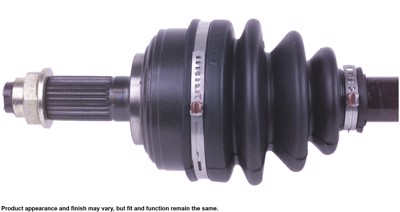

Front Right CV Axle Assembly for Acura Integra Honda Civic Civic del Sol FWD - 60-4032 Cardone

Key Features:
  • As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit
  • Neoprene boots ensure excellent environmental stress resistance, which eliminates cracking - a leading cause of boot failure
  • Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing
Out Of Stock
Free Shipping
Cardone Reman
$93.75
Brand Cardone Reman
Part Number 60-4032
Condition New
Ships Within 1-2 Business Days
This item qualifies for FREE UPS Ground Shipping
Notify Me
Free Shipping
USA 48 contiguous states
Support
9AM-5PM EST
Mon-Fri
100% Safety
Only secure payments
Hot Offers
Daily discounts on hot items
If you are looking to replace your CV Axle Assembly on your Civic, Civic del Sol or Integra Cardone offers top quality remanufactured affordable replacement that matched your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
INTERCHANGE
Acura : 44010SK7J13
Acura : 44010SK7J72
Acura : 44010ST7N50
Acura : 44010ST7N00
Acura : 44010S04J01
Acura : 44010S04J51
Acura : 44010SK7J22
Honda : 44010S04J51
Honda : 44010ST7N00
Honda : 44305S04J10
Honda : 44010S04J01
Honda : 44010ST7N50
SPECIFICATIONS
First Application Year
1990
Package Contents
Complete Axle
Product Condition
Remanufactured
Spindle Nut Included
Yes
Spindle Nut Hex Head Size
32mm
Spindle Nut Thread Size
M22 x 1.5
Axle Nut Locking Type
Stake
ABS Ring Included
No
Input Shaft Connection Style
Spline
Input Shaft Spline Count
27
Output Shaft Connection Style
Spline
Output Shaft Spline Count
26
E-Waste
No
FAQs
Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly.
FAQs
Are the CV Drive Axle shafts balanced at the factory?
FAQs
Can I let the CV Drive Axles hang while I am working on the car?
FAQs
I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this?
FAQs
I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why?
FAQs
I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do?
FAQs
Is it OK to use an impact hammer to install the retaining nut?
FAQs
Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint.
FAQs
Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications.
FAQs
NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one.
FAQs
Shafts are inspected 100% for run out to prevent vibrations.  Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly.
FAQs
The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it?
FAQs
The most likely cause is a broken bearing cage due to excessive torque load.  This is typically an outboard joint problem.
FAQs
The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced.
FAQs
The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up.
FAQs
The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAQs
The old CV Drive Axle has a locking style (prevailing torque) nut.  Should I reuse it?
FAQs
The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time.
FAQs
The wheels wobble when I make a turn. What's the problem?
FAQs
When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise?
FAQs
When I replace the CV drive axles, should I reuse the old seals?
FAQs
When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong?
FAQs
When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking.
FAQs
When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on.
Features and Benefits
As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
Features and Benefits
Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing.
Features and Benefits
CV Drive Axle is measured after assembly to ensure proper fit.
Features and Benefits
CV Drive Axle shafts are inspected for run out to prevent vibration.
Features and Benefits
High-quality grease withstands high-temperature and pressure extremes, which extends joint life.
Features and Benefits
High-tech grinding machines maintain the original design of the outer housing, race and cage to guarantee reliable performance.
Features and Benefits
Neoprene boots ensure excellent environmental stress resistance, which eliminates cracking - a leading cause of boot failure.
Features and Benefits
Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Features and Benefits
Splines are chased to ensure proper fit of the axle into the mating hub and transmission, which eliminates installation hassles.
Features and Benefits
Threads are chased to ensure proper fit of the new retaining nut supplied with each CV Drive axle.
Compressed Length (in)
23 3/8"
Cardone Reman
CARDONE''''s extensive experience in testing and engineering CV Drive Axles is the foundation behind our proprietary method of engineering a product that meets and even exceed O.E. performance. We have researched the reasons why original CVs typically fail and designed new solutions to avoid repeat failure. For example, our Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and ozone cracking - the leading cause of boot failure. Additionally, all CV Drive Axle shafts are individually verified for straightness, resulting in vibration-free performance at all speeds.
