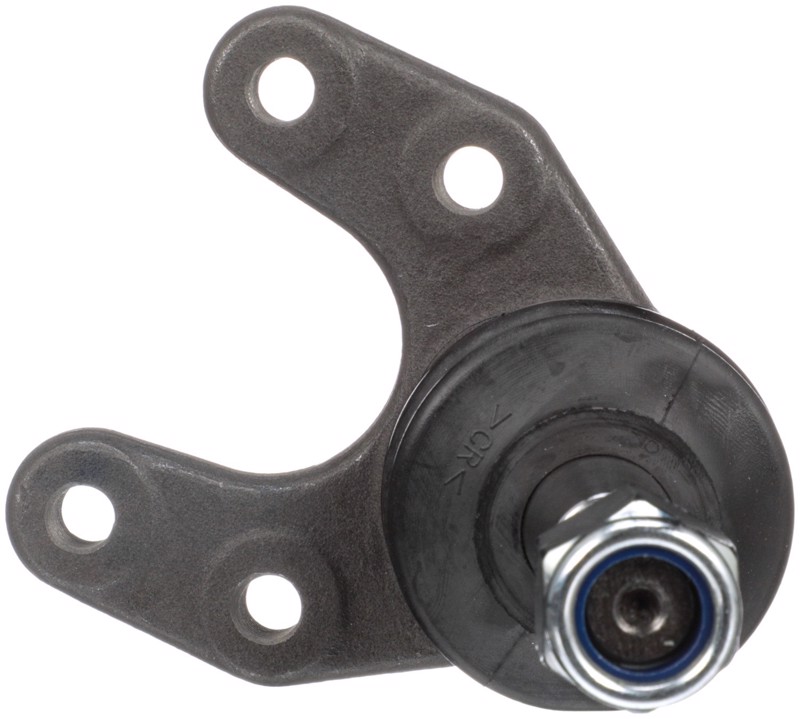

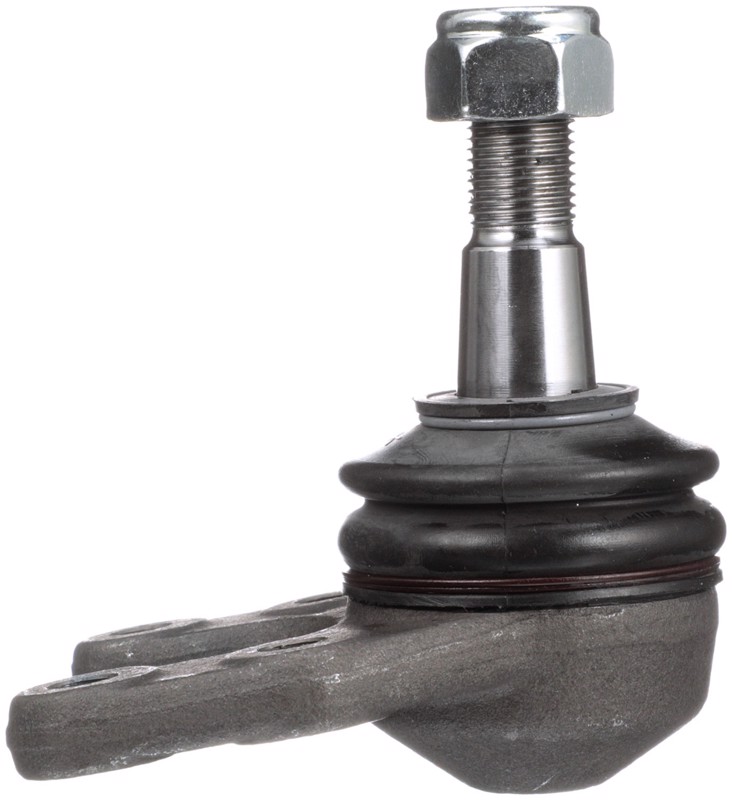

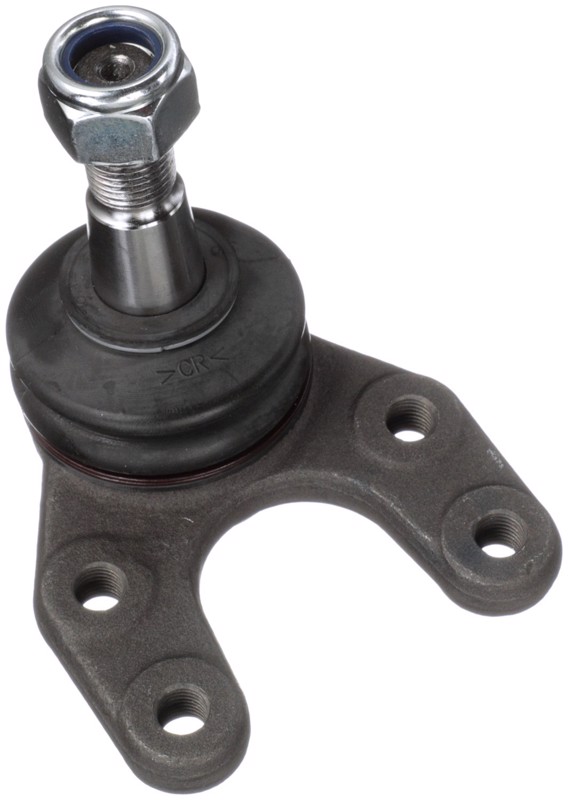

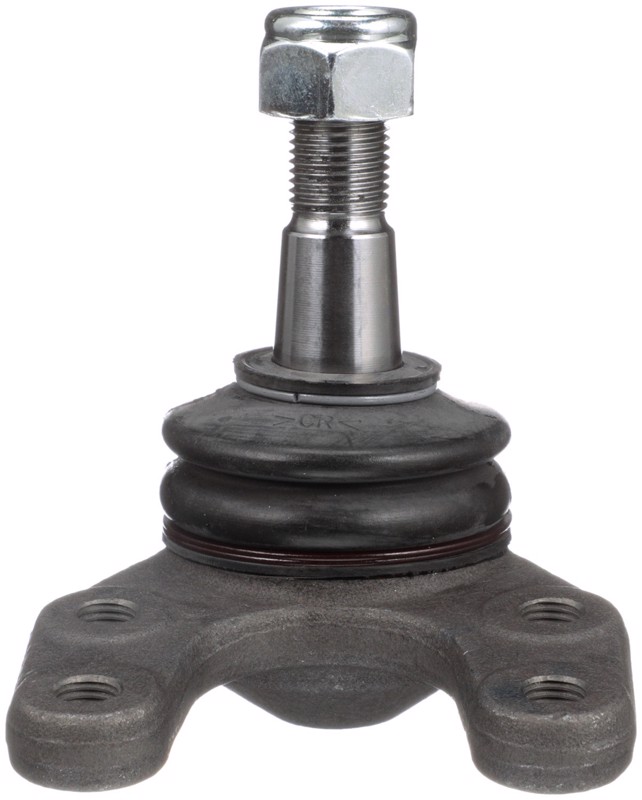

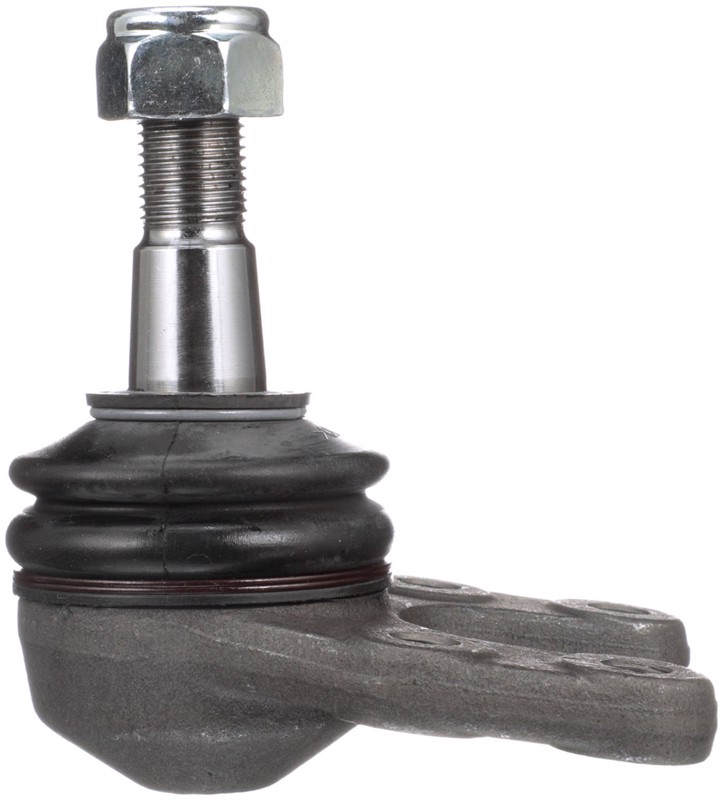

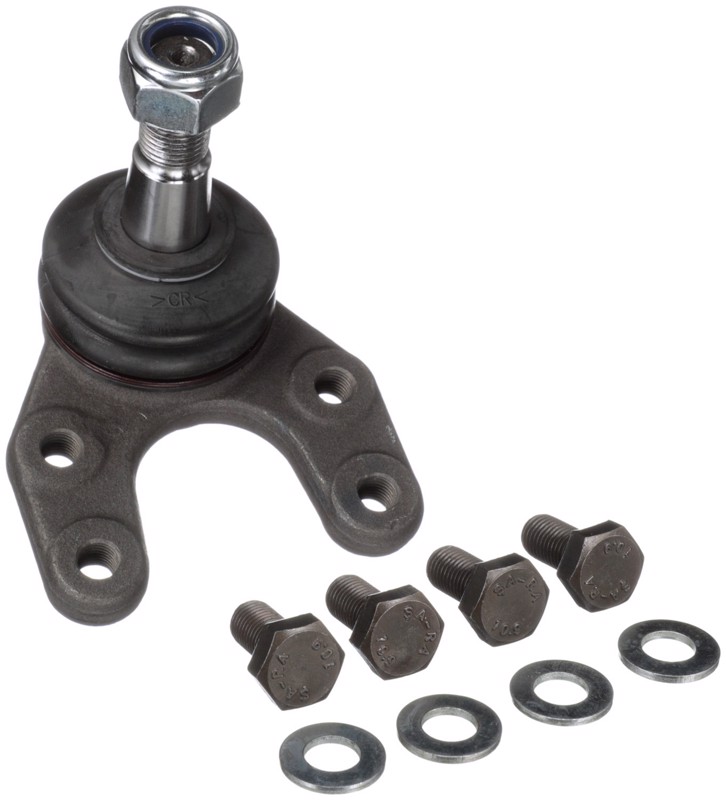

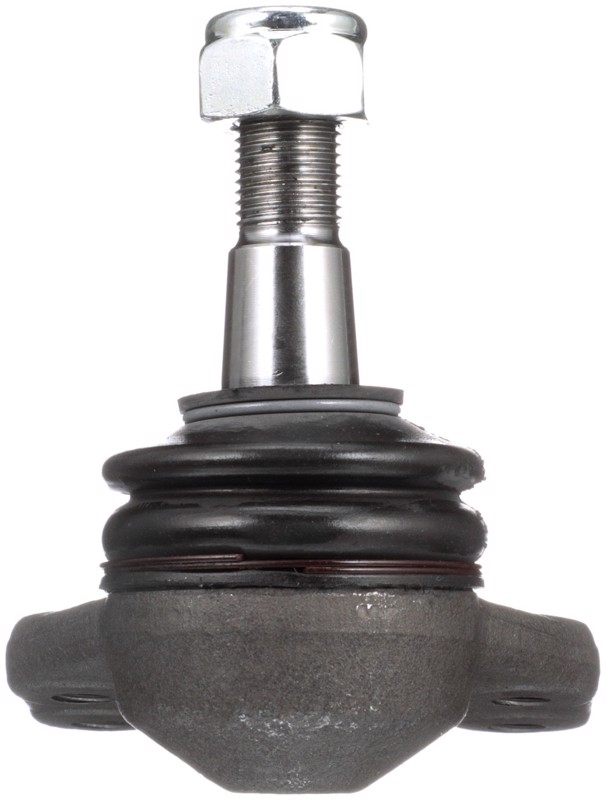

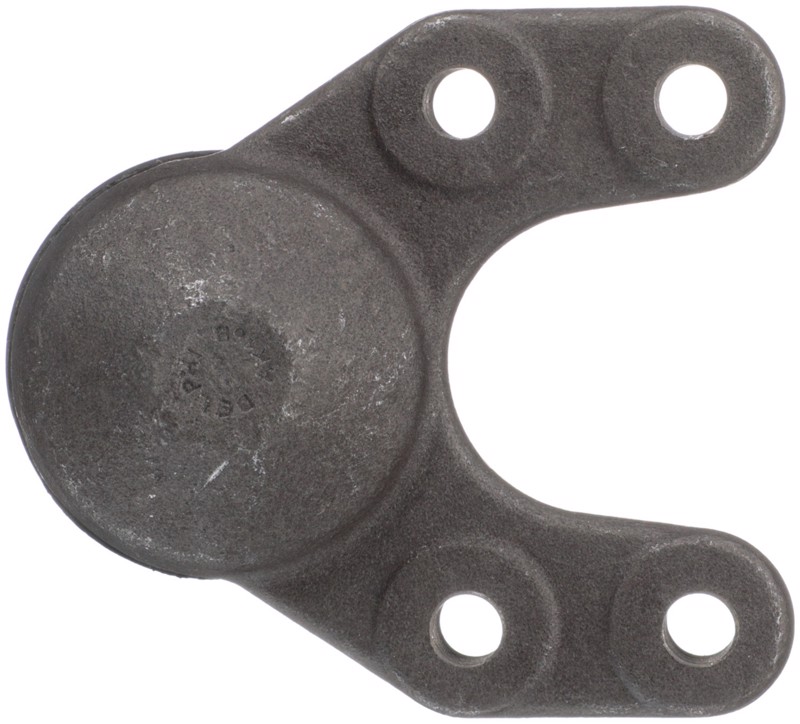

If you are looking to replace your Suspension Ball Joint on your B2000, B2200 or B2600 Delphi offers an affordable replacement that matched your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
INTERCHANGE
Mazda : 8AU2-34-510
Import Direct : BJ07018
Mevotech : MK9597
Mevotech : MS9682
Mevotech : MS9683
MAS Industries : B9554
MAS Industries : B9597
Beck/Arnley : 101-3709
Beck/Arnley : 101-3892
MOOG Chassis Products : K9597
TRW : JBJ439
TRW : JBJ440
SPECIFICATIONS
Material
Steel
Maximum Outside Diameter
4.094
Maximum Outside Diameter
104.0
Length
494
Length
104
Color
Gray
Stud Thread Diameter
0.63
Stud Thread Diameter
16.0
Castle Nut Included
No
Grease Fitting Included
No
Suspension Grade Type
Standard
Bushings Included
No
Dust Boot Included
Yes
Ball Joint Assembly
Yes
Width
90.0
Cotter Pin Included
No
Cotter Pin Hole
No
Mounting Hardware Included
Yes
Mounting Bolt Length
0.984
Mounting Bolt Length
25.0
Washers Included
No
Height
4.134
Height
105.0
Nuts Included
Yes
Mounting Hole Quantity
4
Adjustable
No
Greaseable
No
Stud Thread Length
1.083
Stud Thread Length
27.5
Wrench Size
0.945
Wrench Size
24.0
Stud Type
Threaded
Mounting Type
Bolt On
Distance Between Mounting Holes
29.0
Dust Boot Material
Choloroprene Rubber (CR)
Mounting Bolt Shank Diameter
0.394
Mounting Bolt Shank Diameter
10.0
Mounting Bolt Head Diameter
0.748
Mounting Bolt Head Diameter
19.0
Mounting Bolts Included
Yes
Mounting Bolt Thread Pitch
1.25
Mounting Bolt Thread Length
0.787
Mounting Bolt Thread Length
20.0
Mounting Bolt Thread Diameter
10.0
Mount Plate Included
No
Tapered Stud
Yes
Stud Tapered End 2 Diameter
0.791
Stud Tapered End 2 Diameter
20.1
Stud Tapered End 1 Diameter
0.701
Stud Tapered End 1 Diameter
17.8
Stud Thread Pitch
1.5
Our OE safety technology is fitted to millions of vehicles worldwide and we apply our OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
