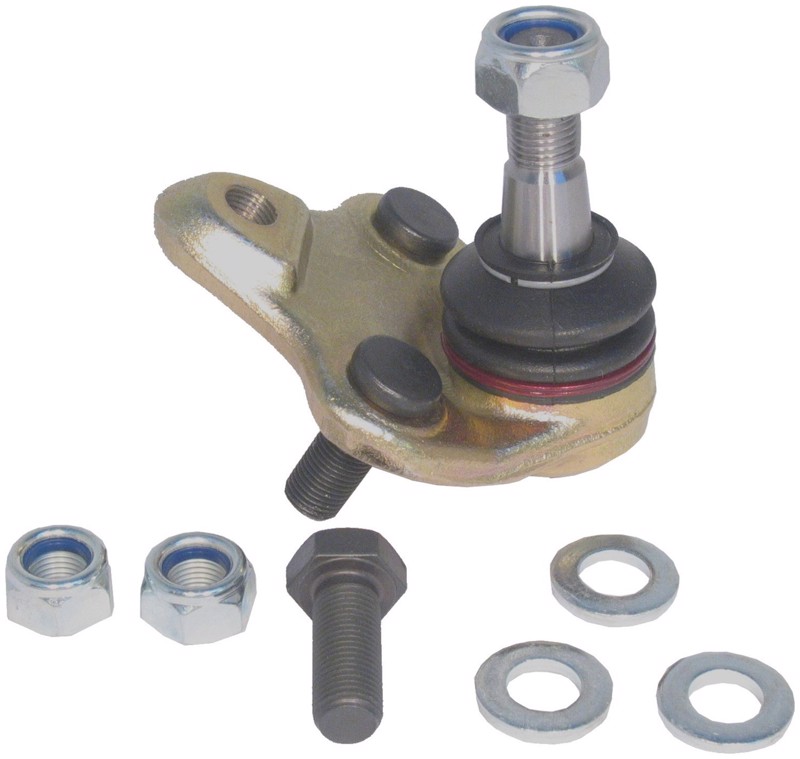

Front Lower Suspension Ball Joint for Chevrolet Prizm Geo Prizm Toyota Celica Corolla Prius Prius AWD-e Prius Prime RAV4 - Delphi TC1413

Key Features:
  • Meets or Exceeds Original Equipment Manufacture Specifications
In Stock
Free Shipping
Delphi
$37.56
Brand Delphi
Part Number TC1413
Condition New
Ships Within 1-2 Business Days
This item qualifies for FREE UPS Ground Shipping
Free Shipping
USA 48 contiguous states
Support
9AM-5PM EST
Mon-Fri
100% Safety
Only secure payments
Hot Offers
Daily discounts on hot items
If you are looking to replace your Suspension Ball Joint on your Celica, Corolla, Prius or Prius AWD-e Delphi offers an affordable replacement that matched your oem parts quality.
FITMENT CHART
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
Please wait...
INTERCHANGE
Import Direct : BJ07010
Mevotech : MK90309
Mevotech : MK9756
Mevotech : MS20244
Mevotech : MS20245
Mevotech : MS9806
Mevotech : MS9807
MAS Industries : B90309
MAS Industries : BJ75065
Beck/Arnley : 101-4808
Beck/Arnley : 101-5320
Beck/Arnley : 101-5777
TRW : JBJ681
Toyota : 43330-09070
Toyota : 43330-09090
Toyota : 43330-09230
Toyota : 43330-19115
Deeza : TY-F217
MOOG Chassis Products : K90309
Mcquay-Norris : FA2211
Raybestos Chassis : 505-1308
SPECIFICATIONS
Material
Steel
Maximum Outside Diameter
3.346
Maximum Outside Diameter
85.0
Length
98
Castle Nut Included
Yes
Grease Fitting Included
No
Suspension Grade Type
Standard
Bushings Included
No
Dust Boot Included
Yes
Ball Joint Assembly
Yes
Width
85.0
Type
Premium
Cotter Pin Included
Yes
Cotter Pin Hole
Yes
Mounting Hardware Included
Yes
Mounting Bolt Length
1.457
Mounting Bolt Length
37.0
Washers Included
Yes
Height
3.307
Height
84.0
Nuts Included
Yes
Mounting Hole Quantity
3
Adjustable
No
Greaseable
No
Stud Thread Length
0.756
Stud Thread Length
19.2
Stud Type
Threaded
Mounting Type
Bolt On
Distance Between Mounting Holes
35.1
Distance Between Mounting Holes
55.9
Dust Boot Material
Choloroprene Rubber (CR)
Bushing Quantity
0
Mounting Bolt Head Diameter
0.709
Mounting Bolt Head Diameter
18.0
Mounting Bolts Included
Yes
Mounting Bolt Thread Pitch
1.25
Mounting Bolt Thread Length
0.984
Mounting Bolt Thread Length
25.0
Mount Plate Included
No
Tapered Stud
Yes
Stud Tapered End 2 Diameter
0.594
Stud Tapered End 2 Diameter
15.1
Stud Tapered End 1 Diameter
0.713
Stud Tapered End 1 Diameter
18.1
Stud Thread Pitch
1.5
Delphi
Our OE safety technology is fitted to millions of vehicles worldwide and we apply our OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi's extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.
