Axle Nut Locking Type
Self Lock
Compressed Length (in)
22 7/8"
FAQs
Always use the proper press type tool to remove the old stub shaft. NEVER strike the outer joint stub shaft with a hammer. It will damage the unit and possibly do damage to the hub bearing assembly.
FAQs
Are the CV Drive Axle shafts balanced at the factory?
FAQs
Can I let the CV Drive Axles hang while I am working on the car?
FAQs
I hear a grinding noise from the front end while driving and see grease on the chassis and suspension. What is causing this?
FAQs
I installed a replacement CV drive axle and now my ABS light is on and won't go out. Why?
FAQs
I removed both CV drive axles at the same time and now I am having problems reinstalling them. What can I do?
FAQs
Is it OK to use an impact hammer to install the retaining nut?
FAQs
Never allow the CV Drive Axles to hang unsupported. This can lead to axle separation and damage to the inner joint.
FAQs
Never use an impact wrench to install the retaining nut on the CV Drive Axle. Always use a torque wrench and torque the nut to manufacture's specifications.
FAQs
NO! A prevailing torque lock nut should never be reused. Always discard the old nut and install a new one.
FAQs
Shafts are inspected 100% for run out to prevent vibrations. Only shafts that meet the specifications for run out are utilized in the remanufacturing of a CV Drive Axle assembly.
FAQs
The CV Drive Axle outboard joint stub shaft is stuck in the hub assembly. What's the best way to remove it?
FAQs
The most likely cause is a broken bearing cage due to excessive torque load. This is typically an outboard joint problem.
FAQs
The most likely cause is a defective or worn outer CV drive axle joint. It may be time to get it replaced.
FAQs
The most likely cause is the drive train shifting in the chassis due to a broken engine mount or hardware, causing misalignment of the CV drive axle and causing the inner joint to bind or hang up.
FAQs
The most likely problem is the outer CV drive axle boot has ruptured, causing the grease to leak out, allowing contamination (water and dirt) to enter and damage the joint.
FAQs
The old CV Drive Axle has a locking style (prevailing torque) nut. Should I reuse it?
FAQs
The transaxle gear alignment has been lost. On some vehicles it will be necessary to disassemble the transaxle to properly align the output gears. ALWAYS remove and install one CV drive axle at a time.
FAQs
The wheels wobble when I make a turn. What's the problem?
FAQs
When I cut the wheel hard and step on the gas, I hear loud clicking and snapping. What's making that noise?
FAQs
When I replace the CV drive axles, should I reuse the old seals?
FAQs
When I step on the gas, I hear a loud thump and feel a bad vibration. What's wrong?
FAQs
When replacing CV Drive Axle assemblies, always install new transaxle seals to avoid leaking.
FAQs
When the replacement drive axle was installed, the sensor ring, sensor, or sensor wiring on or near the axle was damaged, causing an erratic speed signal to the ABS module and setting the light on.
Features and Benefits
A new axle retaining nut is supplied with every unit for a hassle-free installation, due to the likelihood that the original retaining nut is worn or stripped
Features and Benefits
Boot clamps are pneumatically crimped, creating a perfect seal between the boot and housing
Features and Benefits
CV Drive Axle measurements are validated after assembly to ensure a proper fit
Features and Benefits
CV Drive Axle part numbers with an “HD” suffix are severe-duty applications and include a thermoplastic outboard boot for increased life and durability versus a traditional neoprene boot.
Features and Benefits
High-quality grease withstands high-temperature and high-torque demands to ensure long-lasting, reliable performance
Features and Benefits
Neoprene boots are designed with additional bellows, when needed, to resist bellow stress and cracking, which is the leading cause of boot failure
Features and Benefits
Proprietary engineering processes ensure that all CV Drive Axles meet O.E. form, fit and function
Features and Benefits
Splines are precision rolled to ensure proper fit of CV Drive Axle into the mating hub and transmission, which eliminates installation hassles
Features and Benefits
Threads are precision rolled to ensure proper fit when axle nut is installed
Features and Benefits
Transmission seal diameter is precision-machined after heat treatment to ensure correct surface finish, promoting long seal life
First Application Year
2007

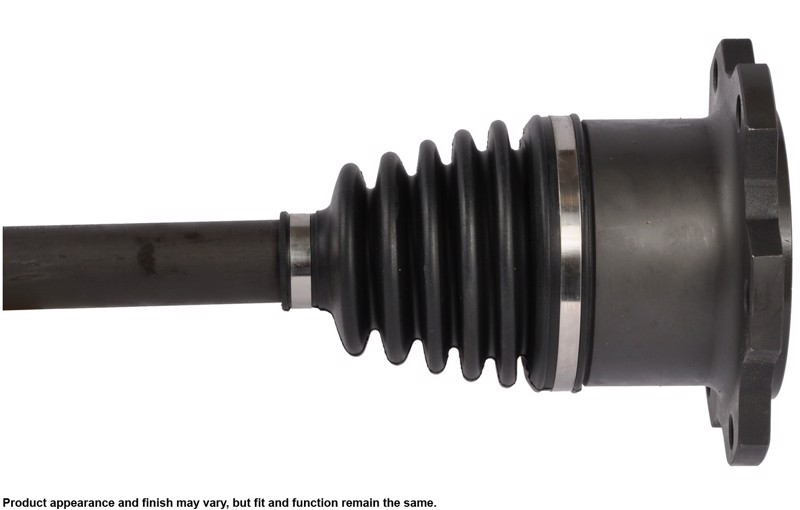

Input Shaft Connection Style
Bolt-On

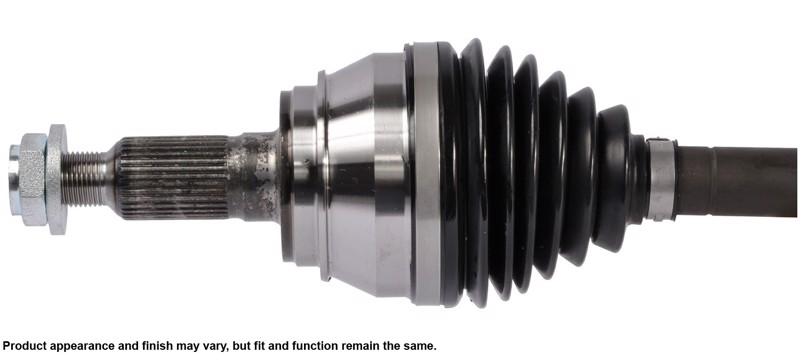

Output Shaft Connection Style
Spline
Output Shaft Spline Count
33
Package Contents
Complete Axle
Spindle Nut Hex Head Size
36mm
Spindle Nut Thread Size
M24 x 2.0
